Adaptive Vacuum Nozzle
Project 004 — 2026
Safely maintaining airflow and suction performance in tight electronic enclosures
Problem Statement
Cleaning the electronics bay of consumer 3D printers in high-density condo environments presents unique contamination challenges such as dust, cockroach waste and eggs, and other types of debris. Narrow geometries can easily block standard vacuum nozzles, leading to sudden airflow restriction that causes 600 W vacuum motors to rapidly overheat or stall.
Solution
Designed and fabricated a custom vacuum nozzle with a passive airflow bypass that maintains intake flow if the primary opening becomes obstructed. The internal geometry balances suction effectiveness with motor safety by reducing sudden inlet restriction. Airflow behavior was validated using CFD in SimScale, and the part was optimized for FDM printing that minimized the need for unnecessary amounts of internal supports.
Key Metrics
Technical Highlights
- —Passive Bypass Architecture to prevent vacuum motor stall/overheating
- —CFD validation of pressure recovery and laminar flow topology
- —Venturi-accelerated tip velocity (>30 m/s) for heavy debris entrainment
Impact & Results
Other Projects
Adaptive Vacuum Nozzle
Project 004 — 2026
FIG 00: Matte black PLA prototype rendered in Blender with chamfered 'Industrial Editor' topology
FIG 01: Operational clearance check within the restricted geometry of the Y-axis electronics bay
FIG 02: CFD simulation confirms Venturi-accelerated tip velocity (>38 m/s) for debris entrainment

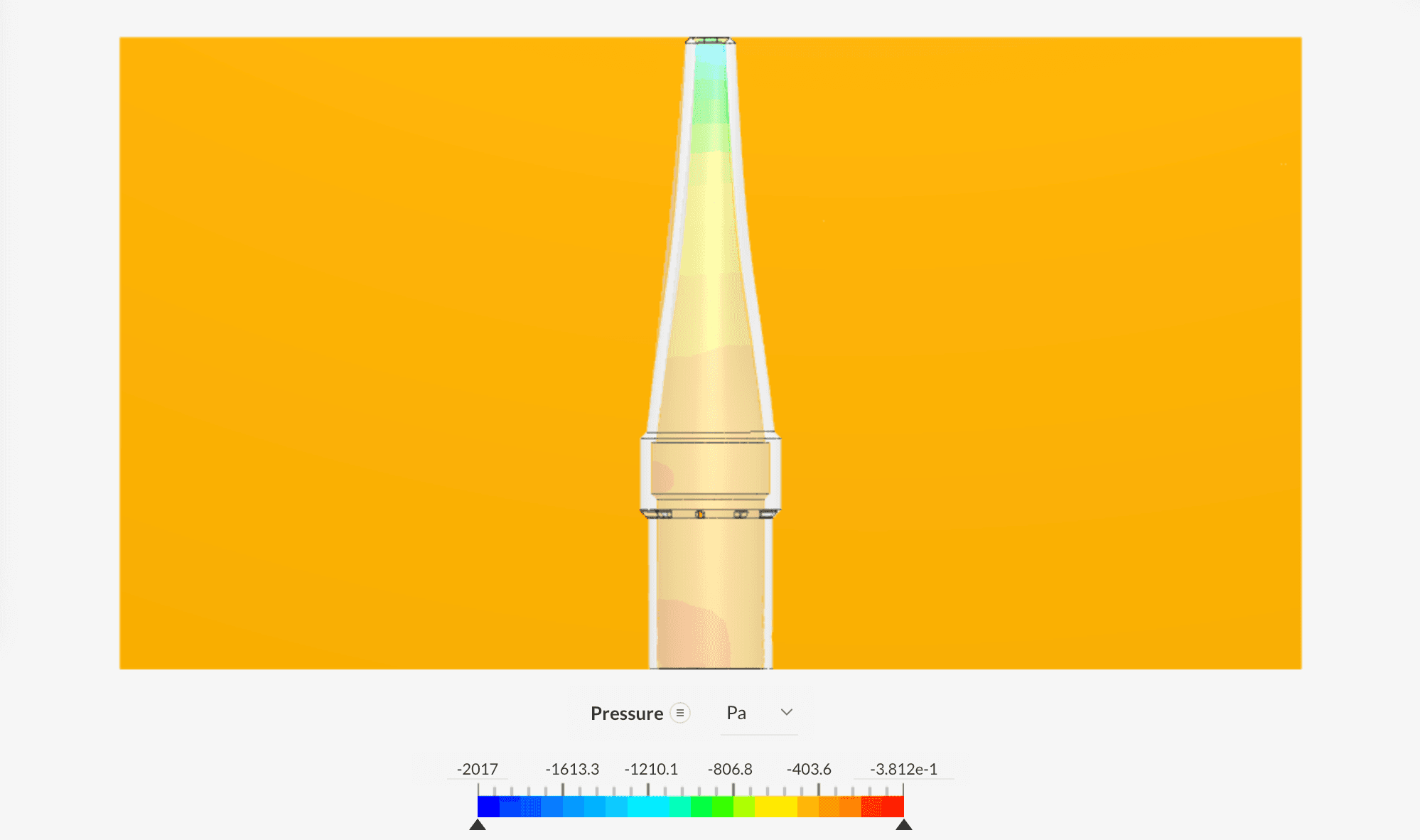

FIG 03: Pressure gradient simulation proving efficient pressure recovery (-2 kPa drop)

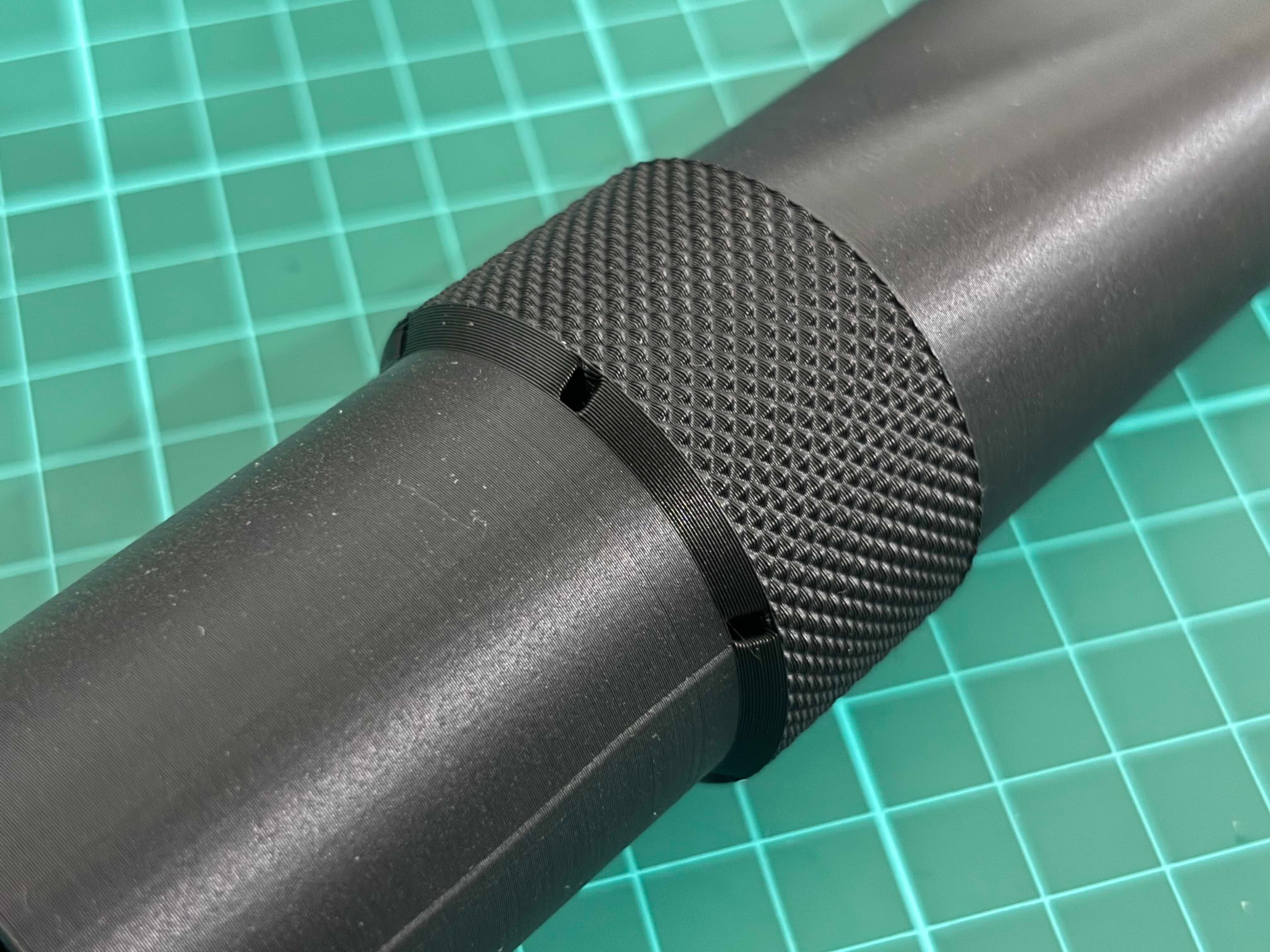

FIG 04: Integrated passive bypass array (knurled section) decoupling cooling airflow from suction velocity
FIG 05: Orthographic projections

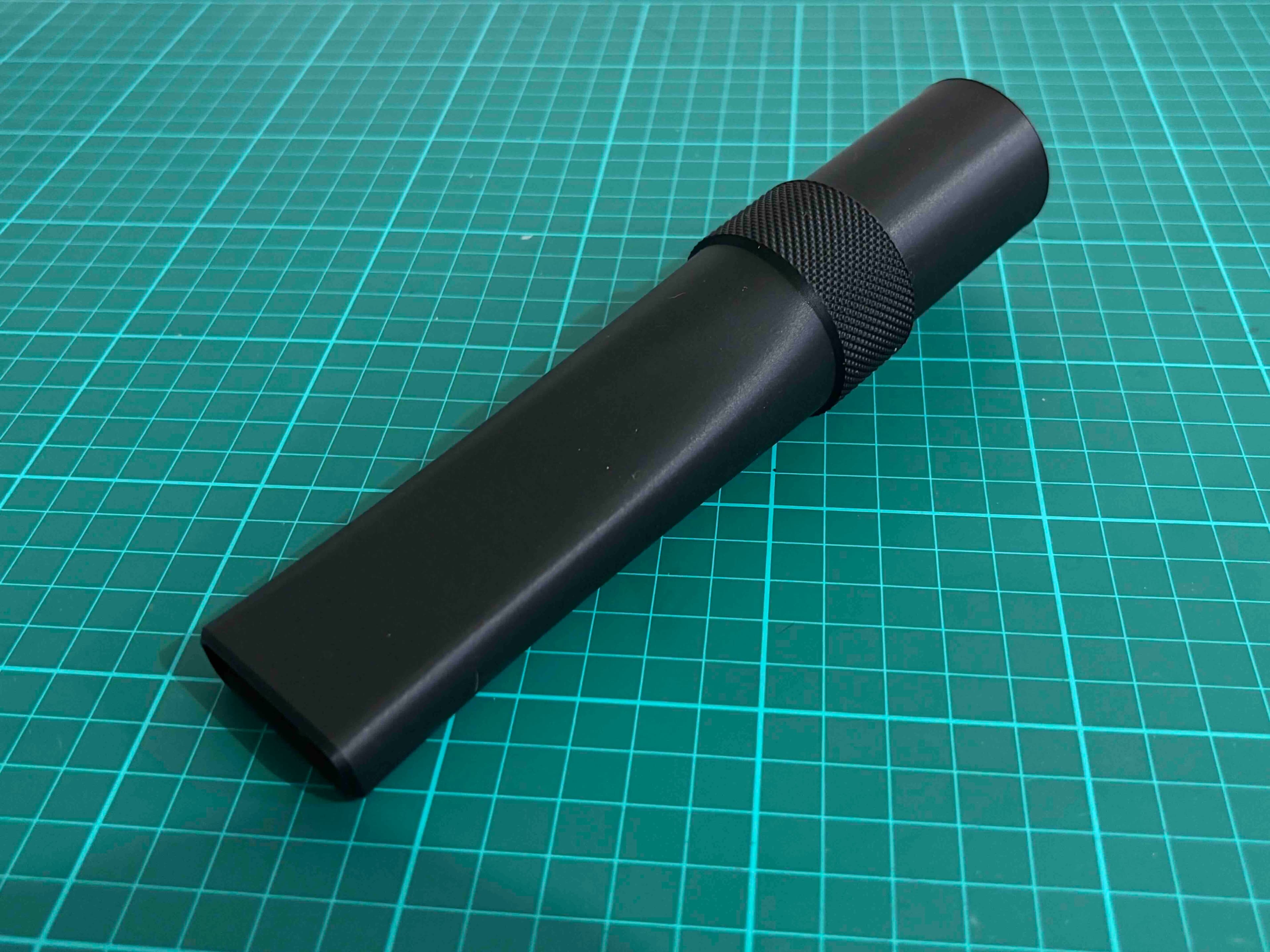

FIG 06: Final Physical Product
