Nail Clipper Replica
Project 001 — 2025
TYPEDigital
ROLEReverse Engineer
DURATION6 Days
TOOLSOnshape, AutoCAD, Blender
STATUSCase Study
Turning a physical product into a digital twin
Problem Statement
Commonplace objects often hide clever engineering. The objective was to dissect a standard nail clipper to understand its compound lever mechanism and document it to an industrial manufacturing standard.
Solution
Recreated the assembly in Onshape with G2 continuous surfacing. Generated technical draft in AutoCAD and produced editorial-grade 'product launch' renders in Blender Cycles.
Key Metrics
5
Part Count
Technical Highlights
- —Reverse engineering of compound lever mechanism
- —3D modeling for replicating ergonomic lever curvature
- —Interference detection validating mechanism clearance
- —Technical drawing via AutoCAD
- —Industrial rendering with Blender Cycles
Impact & Results
Before
Physical
After
Digital
1:1 Match
Visual Fidelity
Other Projects
Nail Clipper Replica
Project 001 — 2025
TYPEDigital
ROLEReverse Engineer
TOOLSOnshape, AutoCAD, Blender

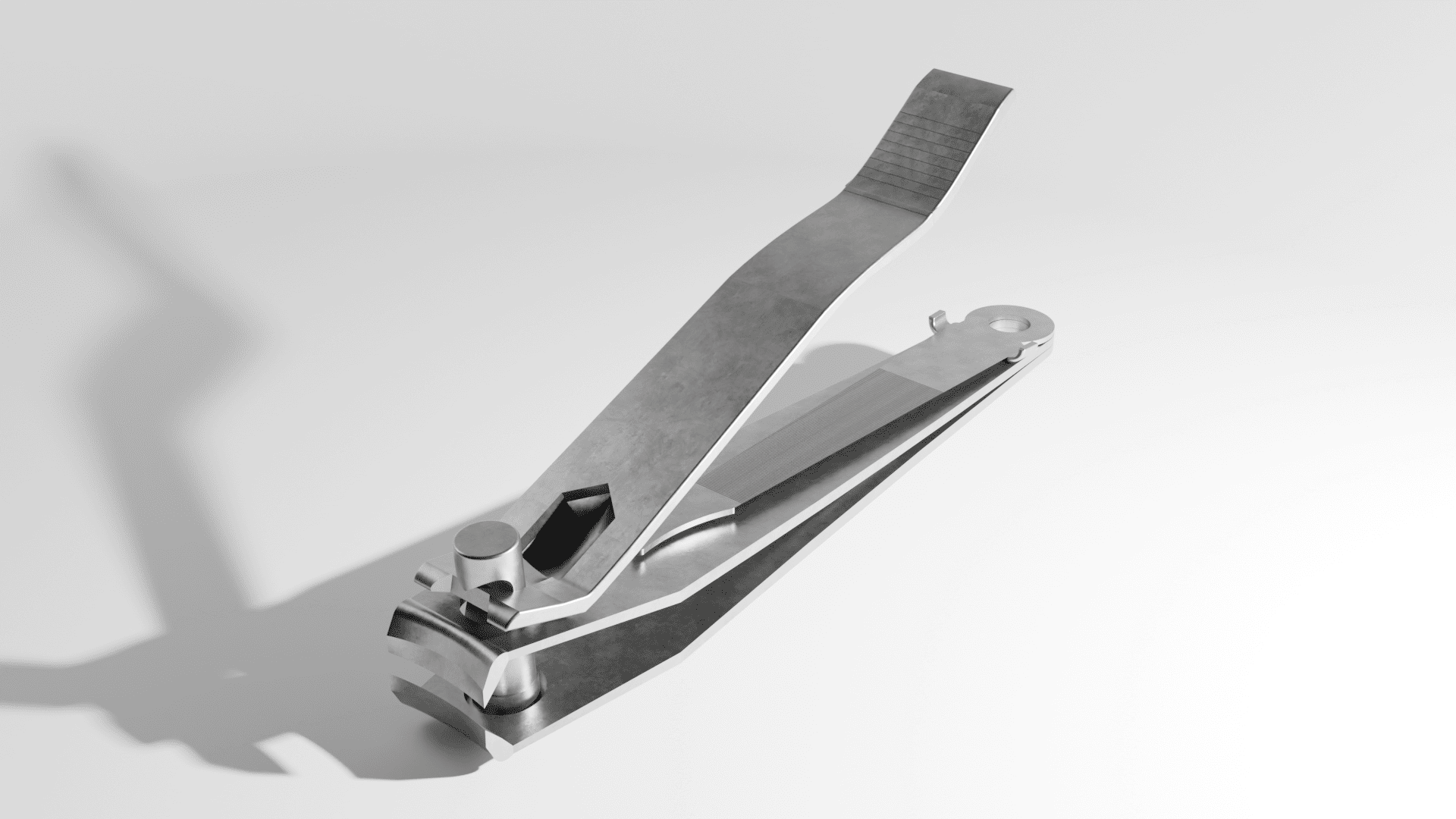

FIG 00: Studio 'Hero' render in Polished Chrome
exploded

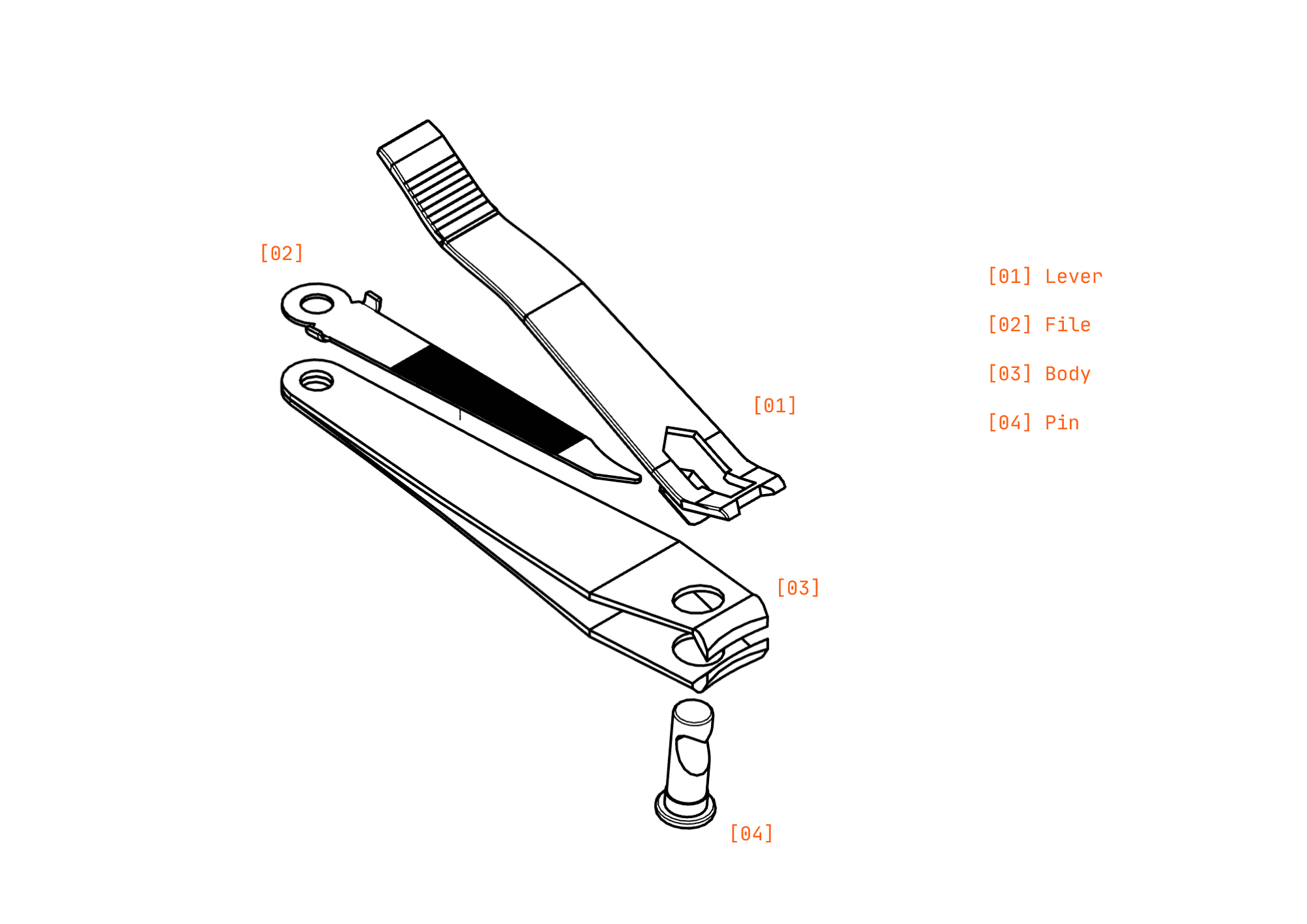

FIG 01: Exploded view showing assembly order
detail

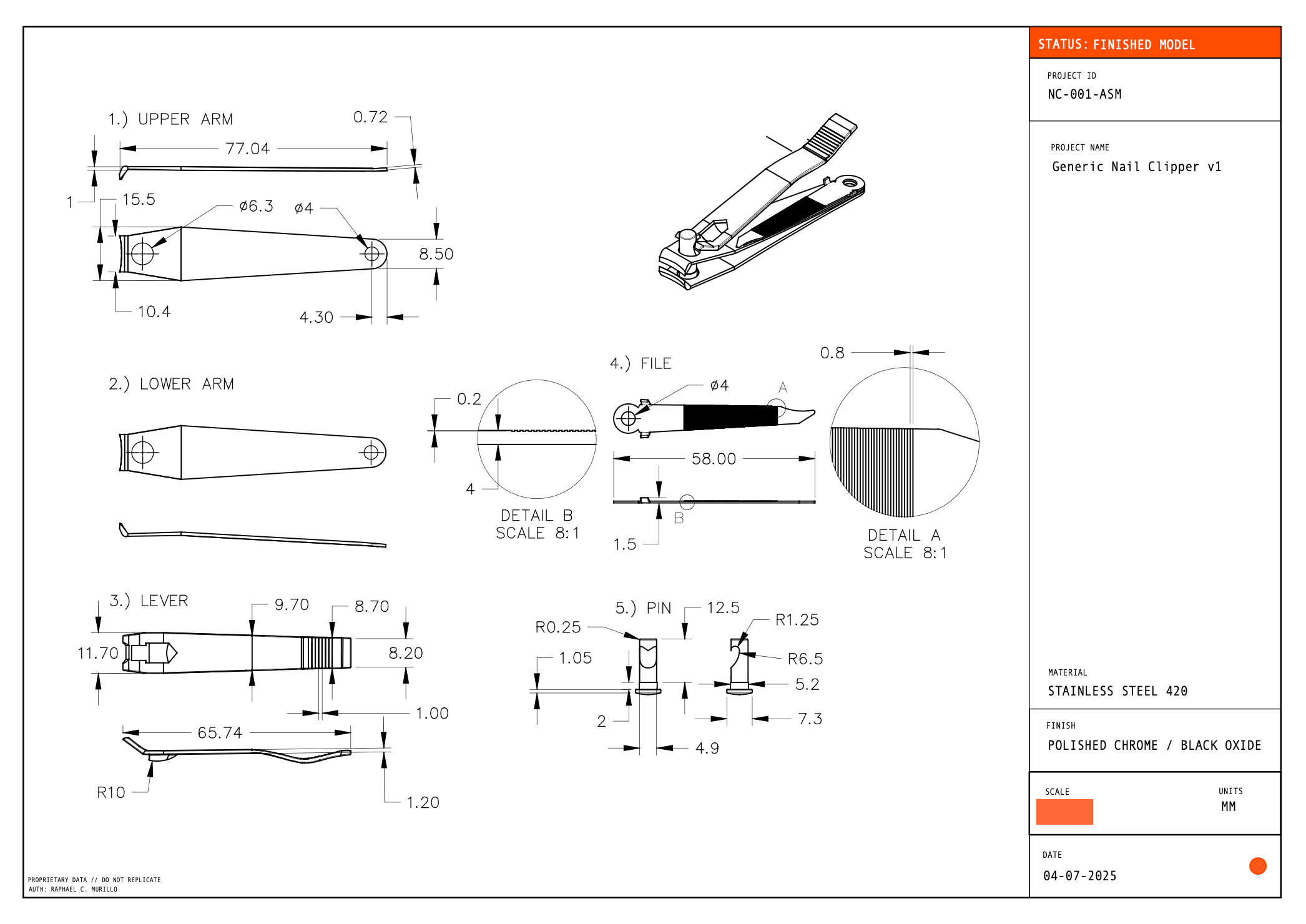

FIG 02: Manufacturing technical drawing (AutoCAD)
section view

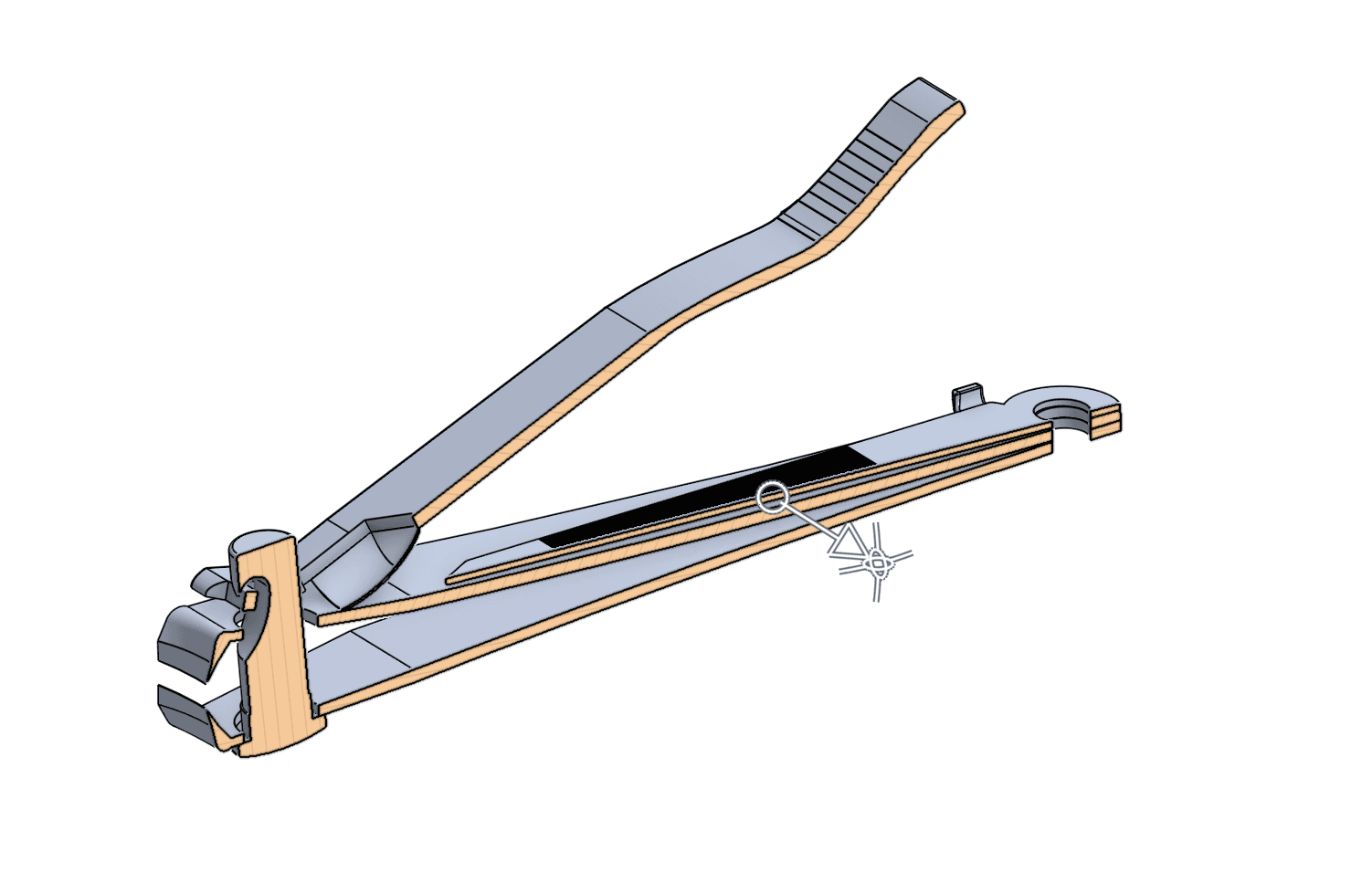

FIG 03: Section analysis showing internal mechanism

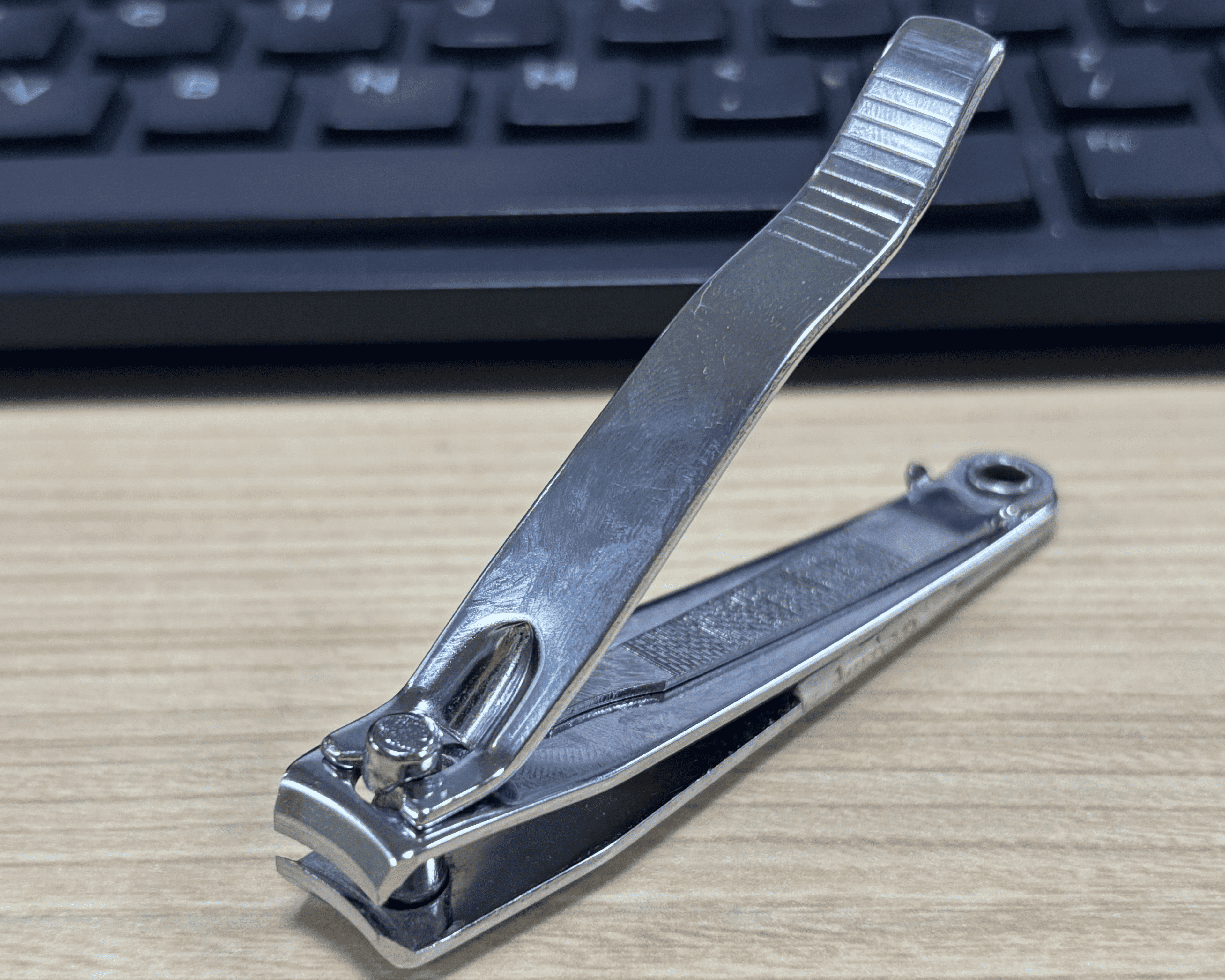

FIG 04: Physical reference object
Before / After Comparison
Before
Physical Reference
After
Digital Twin
